Maple Ridge, opened 2002
Pacific Bending & Machine
The main shop, and the address a quote comes from. Bending, cutting, machining, fabrication and finishing, on River Road since 2002.
#2 - 23492 River Road
Maple Ridge, BC V2W 1B7
Eleven processes under one roof, so a part does not leave the building to be finished.
A contract fabricator and bender with two shops in British Columbia. Mandrel tube bending, roll bending, hi-def plasma, machining, fabrication and powder coating are all done in house, which is the company’s own description of what makes the shop different.
Send a drawing01
The capability sheet
What each process is, and the limits the shop publishes for it. Sizes are the shop’s own, printed as published; where a process has no published figure the row says so.
ProcessWhat it isPublished limit
Draw bendingMandrel tube and pipe bending on manual and NC machines, from a stock of hundreds of dies.3.5 in · 3.0 in · Hundreds, wide variety of bendsRoll bendingLarge radius bends for architectural and artistic work.Aluminum, steel, stainless steel · Large radiusTube flanging and flaringO-ring face seal, AN and JIC flaring for rigid hydraulic lines, with pickled pipe and JIC tubing in stock.-3 to -24 (3/16 in to 1 1/2 in outside diameter) · 37 and 90 · Pickled pipe and JIC tubing, various sizesPlasma and flame cuttingIn-house hi-definition plasma and twin-head flame cutting in mild steel, stainless, AR plate and aluminum.2.25 in · 8.00 in · 8 ft x 24 ft sheetsSaw cuttingSaw cutting out of material held in stock, so a job can start without waiting on an order.18.00 in x 20.75 in · Thousands of pounds in stockMachiningCNC and manual machining, with product modelling alongside the machine work.On requestFabricationMIG and TIG fabrication in stainless steel, steel and aluminum for forestry, construction, automotive, aerospace, military and mining, including OEM products.Stainless steel, steel, aluminum · MIG and TIG · Auto-saw cutting, iron working (punching, shearing), fly marking, bead rolling, plate rollingMedia blastingIn-house garnet blasting to a clean abrasive surface, which is what powder coat needs to adhere.GarnetPowder coatingHand coating over media blasting or a bio-friendly chemical wash, at the MIL thickness each product calls for.Wide variety · Available on request · MIL thickness per productPress brakePress braking, advertised by the shop on its process list.On requestFly markingFly marking, one of the shop’s in-house fabrication specialities.On request

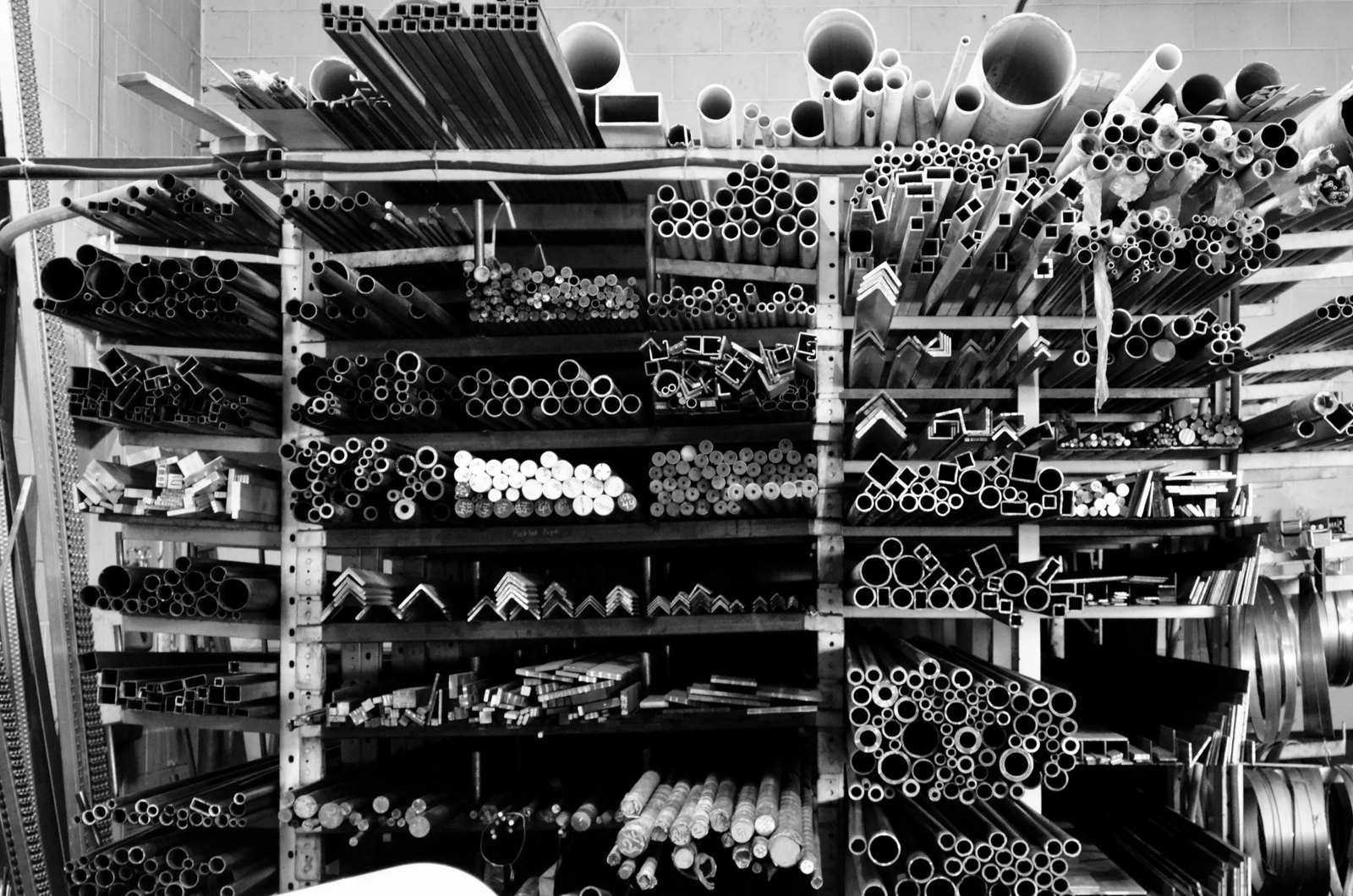

The rack at Maple Ridge. Material on the floor is the difference between a start date and a quote.
02
Why the rack is the answer
Most of what decides a lead time in a fabrication job is not machine time. It is whether the material and the tooling are already there.
- Material held
- Thousandsof pounds of metal in stock
- Bending dies held
- Hundredsin the rack, not ordered per job
Both figures are the shop’s own. They are the reason a single part can be quoted and started rather than scheduled behind a material order.
03
Two shops
One standard, in two places.
100 Mile House, joined 2018
Pacific Exco
A large-scale shop that has been working since 1969. Built for the kind of job that needs the floor and the crane rather than the bench.
350 Exeter Truck Route
100 Mile House, BC V0K 2E0
“It’s been a pleasure working with Andrew and the Pacific family over the years. I wish all my vendors were as easy to deal with; they are very responsive and the finished product is always excellent.”
K.C., salesan international engine, generator and technology company
Published by Pacific Bending with the customer’s initials rather than their name, at the customer’s request. We have kept it that way.
04
Start a job
Send the drawing.
A PDF or a model file, the material, the quantity and the finish. That is enough for a shop to price a job or to say plainly that it is not the right shop for it.
Open the enquiry- BringDrawing, material, quantity, finish
- Or call604 463 8900
- HoursMonday to Friday, 08:00 to 16:30
